A standard 12 oz aluminum can stands exactly 4.83 inches (122.7 mm) tall with a 2.6-inch (66 mm) diameter. Simple answer — but aluminum cans come in far more sizes than most people realize.
From 8 oz slim cans to 32 oz crowlers, every format has its own height, diameter, and purpose. This guide covers every aluminum can dimension you need in one place.

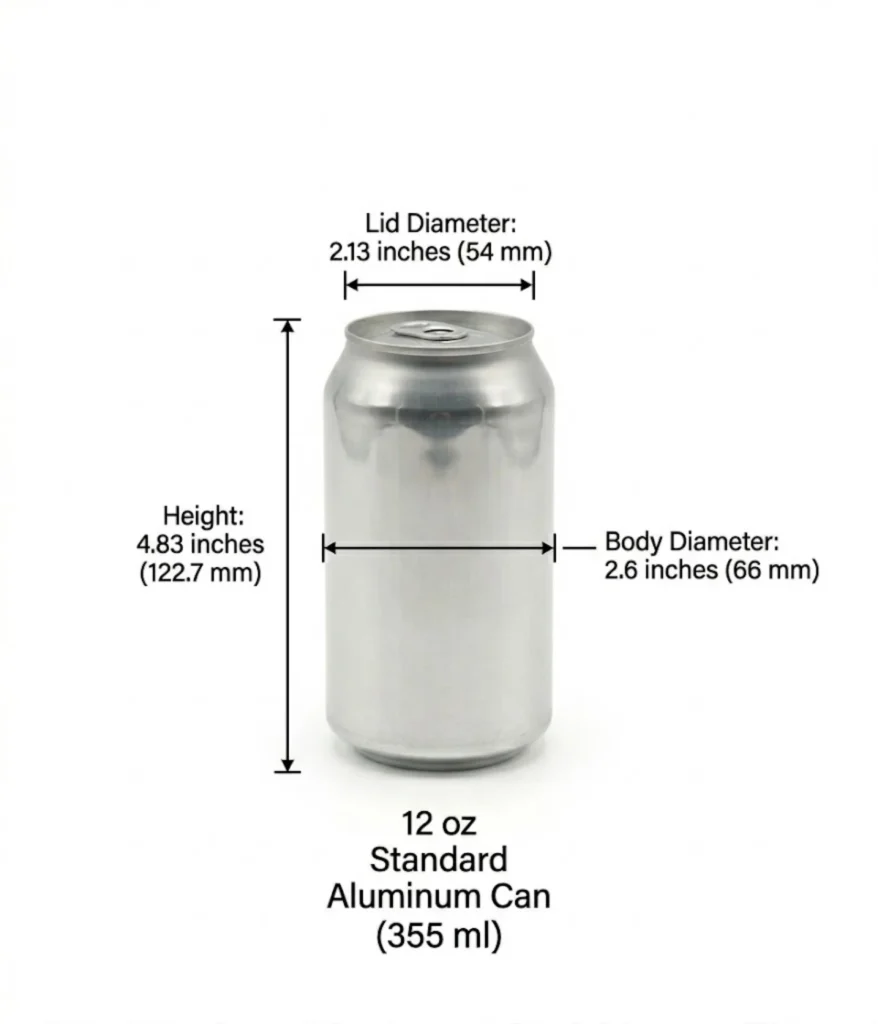

Standard Aluminum Can Height and Dimensions
The 12 oz standard aluminum can is the most common beverage container in the United States. It measures 4.83 inches (122.7 mm) tall with a body diameter of 2.6 inches (66 mm).
One important detail most people miss — the lid diameter is smaller than the body. The can body is 2.6 inches wide, but the end (lid) narrows to 2.13 inches (54 mm). This tapered neck design saves aluminum material and adds structural strength.
| Dimension | Measurement |
|---|---|
| Height | 4.83 inches (122.7 mm) |
| Body Diameter | 2.60 inches (66 mm) |
| Lid Diameter | 2.13 inches (54 mm) |
| Volume | 12 oz / 355 ml |
| Label Height | 3.625 inches (3⅝ in) |
| End Size | 202 |
Real-world comparison: A 12 oz aluminum can is roughly as tall as a deck of playing cards standing upright. Its diameter is close to the width of a standard coffee mug opening — fits perfectly in any cup holder.

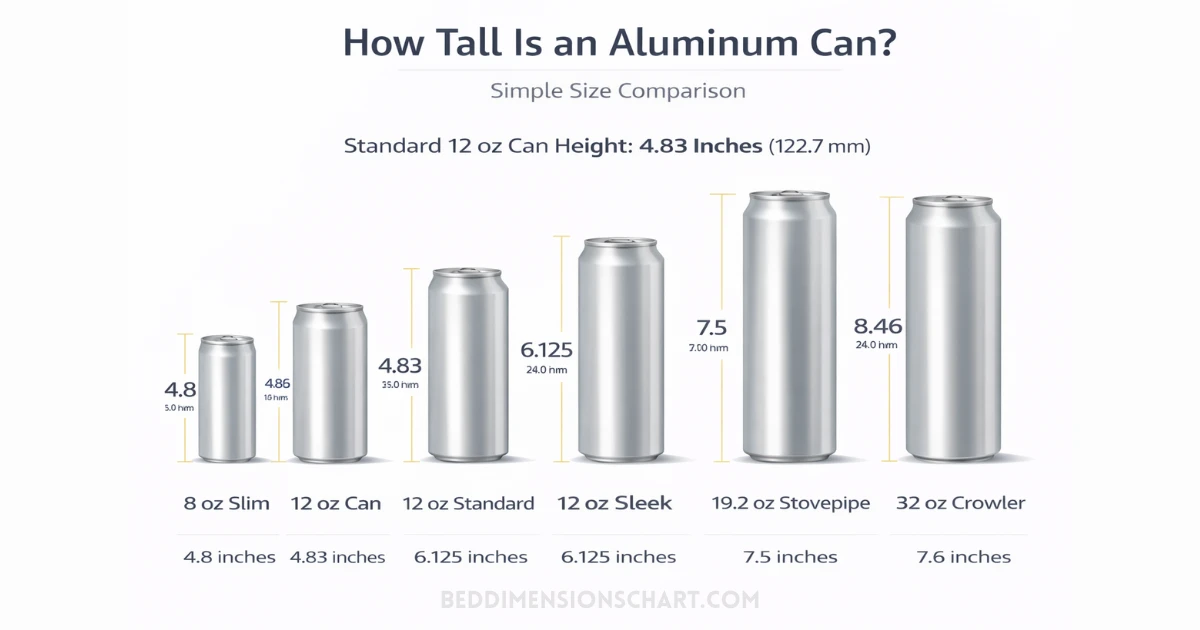

Aluminum Can Sizes Chart — Every Format With Height and Diameter
Aluminum can dimensions vary significantly across formats. The industry identifies can sizes by their end diameter code — for example, “202” means 2 and 2/16ths inches, and “211” means 2 and 11/16ths inches. Here’s every major size in one chart.
| Can Type | Height (in) | Height (mm) | Body Diameter (in) | Volume |
|---|---|---|---|---|
| 8 oz Slim | ~4.80 in | ~122 mm | 2.25 in | 237 ml |
| 12 oz Standard | 4.83 in | 122.7 mm | 2.60 in | 355 ml |
| 12 oz Sleek/Slim | 6.125 in | 155.6 mm | 2.25 in | 355 ml |
| 16 oz Tallboy | 6.19 in | 157 mm | 2.60 in | 473 ml |
| 19.2 oz Stovepipe | 7.50 in | 190 mm | 2.60 in | 568 ml |
| 24 oz | 8.46 in | 215 mm | 2.60 in | 710 ml |
| 32 oz Crowler | 7.60 in | 193 mm | 2.86 in | 946 ml |
Key manufacturing fact: Most aluminum cans from 8 oz to 24 oz share the same 2.60-inch body diameter. Only the sleek/slim format narrows to 2.25 inches, and the crowler widens to 2.86 inches. This standardization lets beverage producers run multiple sizes on the same production line with minimal equipment changes.

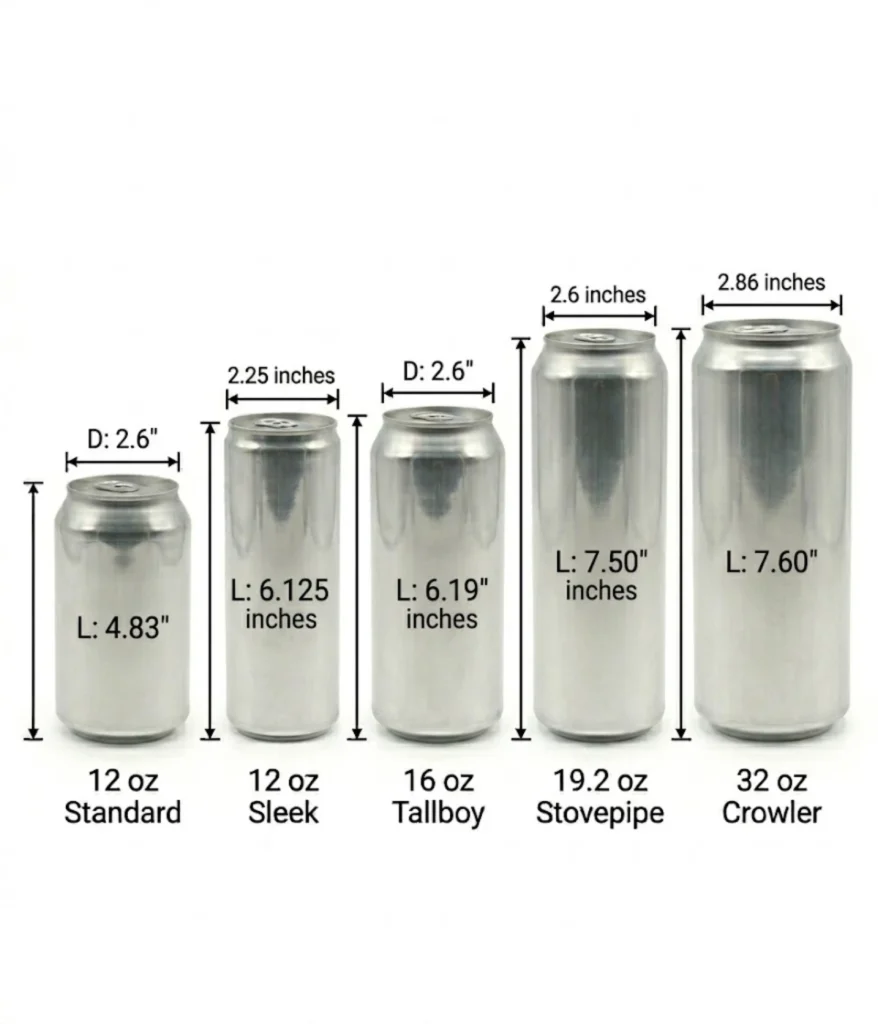

Standard, Sleek, and Tallboy — Aluminum Can Formats Explained
The 12 oz Standard Can
The 12 oz aluminum can at 4.83 inches tall is the undisputed king of the beverage aisle. It holds 355 ml, uses a 202 end size, and fits every standard cup holder, cooler rack, and refrigerator shelf in America.
Its label height of 3.625 inches gives brands enough printable surface for design, nutrition info, and legal copy — all within a compact, instantly recognizable format.
The 12 oz Sleek / Slim Can
Same 355 ml volume as the standard — but a completely different shape. The sleek aluminum can stands 6.125 inches tall at just 2.25 inches wide. That taller, narrower profile creates a modern, premium look on the shelf.
Hard seltzers, energy drinks, and specialty craft beverages favor this format. White Claw, Truly, and Red Bull all built their shelf identity around the sleek silhouette. It stores 15% more units per shelf foot compared to standard cans — a real advantage in tight retail cooler space.
The 16 oz Tallboy
The 16 oz tallboy aluminum can measures 6.19 inches (157 mm) tall with the same 2.60-inch diameter as the standard 12 oz. It holds 473 ml — a near-perfect pint serving.
Craft beer brands, sports drinks, and large-format energy drinks all use this size. Despite being over an inch taller than the standard can, the identical diameter means it works on the same canning equipment with minimal changeover.
The 19.2 oz Stovepipe
At 7.50 inches (190 mm) tall, the stovepipe aluminum can is the single-serve champion of stadiums, arenas, and convenience stores. It holds 568 ml (19.2 oz) — enough to last a full sporting event without a second trip to the concession stand.
Same 2.60-inch diameter as the standard 12 oz and 16 oz, just significantly taller. It’s one of the fastest-growing aluminum can formats in US retail right now.
The 32 oz Crowler
The crowler breaks the diameter pattern entirely. It stands 7.60 inches tall but widens to 2.86 inches — and holds a full 946 ml (32 oz). Craft breweries seal crowlers on-site directly from draft taps using a crowler machine.
Unlike other aluminum cans, the crowler uses a 300 end size instead of the standard 202. That larger sealing rim requires dedicated equipment — but delivers airtight freshness that keeps beer carbonated for up to 30 days.

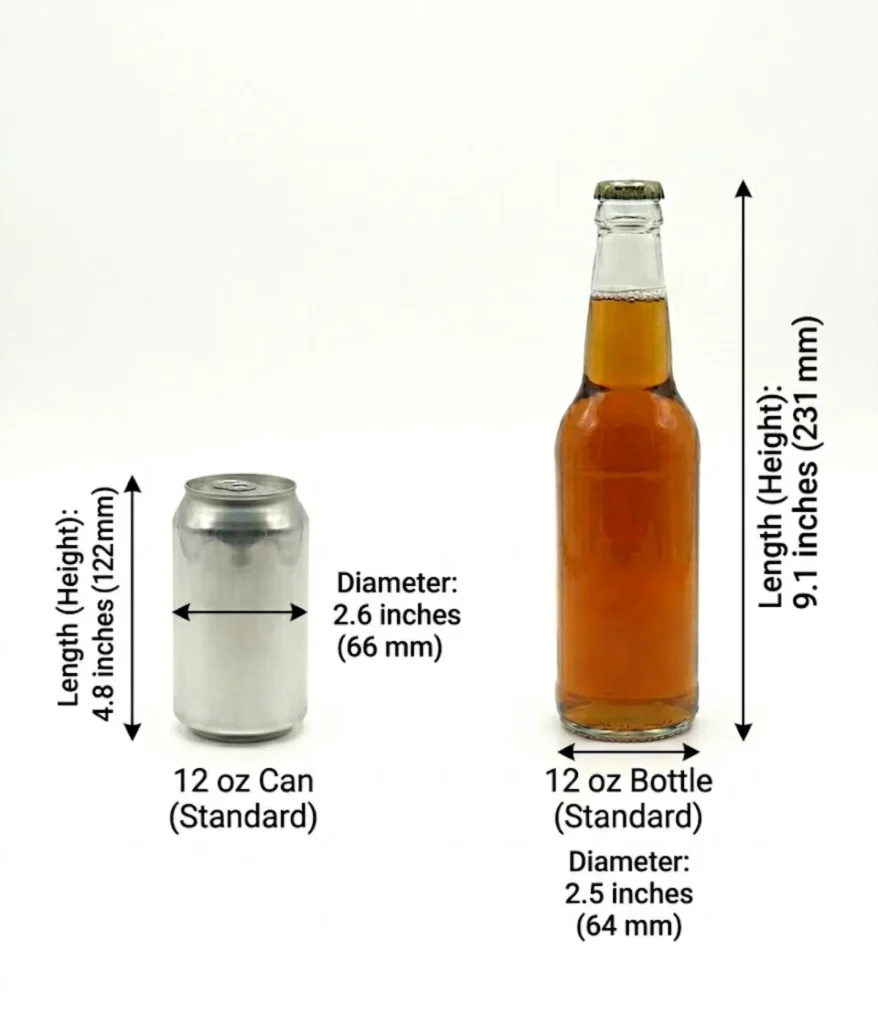

Aluminum Can vs. Glass Bottle — Dimension Comparison
How does an aluminum can compare to a glass bottle of the same volume? The contrast is striking.
| Format | Height | Light Protection | Chill Speed |
|---|---|---|---|
| 12 oz Aluminum Can | 4.83 in | 100% blocked | ~40% faster |
| 12 oz Glass Bottle | ~9.0 in | Partial (UV penetrates) | Standard |
| 16 oz Aluminum Can | 6.19 in | 100% blocked | ~40% faster |
| 16 oz Glass Bottle | ~9.5 in | Partial | Standard |
A 12 oz glass bottle stands nearly 9 inches tall — almost twice the height of an aluminum can holding the same amount. Aluminum cans chill roughly 40% faster than glass and block 100% of UV light, preventing the chemical reaction that degrades flavor over time.
For storage, shipping, and freshness — aluminum can dimensions win across every metric.
Frequently Asked Questions
What are the dimensions of an aluminum can?
A standard 12 oz aluminum can measures 4.83 inches (122.7 mm) tall with a 2.60-inch (66 mm) body diameter and a narrower 2.13-inch (54 mm) lid diameter, holding 355 ml.
How tall is a 16 oz aluminum can?
A 16 oz aluminum can stands 6.19 inches (157 mm) tall with a 2.60-inch (66 mm) diameter, holding 473 ml. It shares the same body diameter as the standard 12 oz — only the height increases.
How big is an aluminum can?
Most standard aluminum cans measure 4.83 inches tall and 2.60 inches wide for the 12 oz format. Sizes range from 4.80 inches (8 oz slim) all the way to 8.46 inches (24 oz) depending on volume.
What is the label height on a 12 oz aluminum can?
The standard label height on a 12 oz aluminum can is 3.625 inches (3⅝ inches) — the printable area on the cylindrical body between the tapered neck and the base curve.
Conclusion
How tall is an aluminum can? The standard 12 oz stands at 4.83 inches, and sizes scale from there up to 8.46 inches for a 24 oz can.
Every aluminum can dimension — height, body diameter, lid diameter, and label area — is engineered for a specific purpose. Whether you’re a brewer choosing a format, a designer sizing a label, or just a curious drinker, these specs tell the full story. Now you have every measurement in one place.
